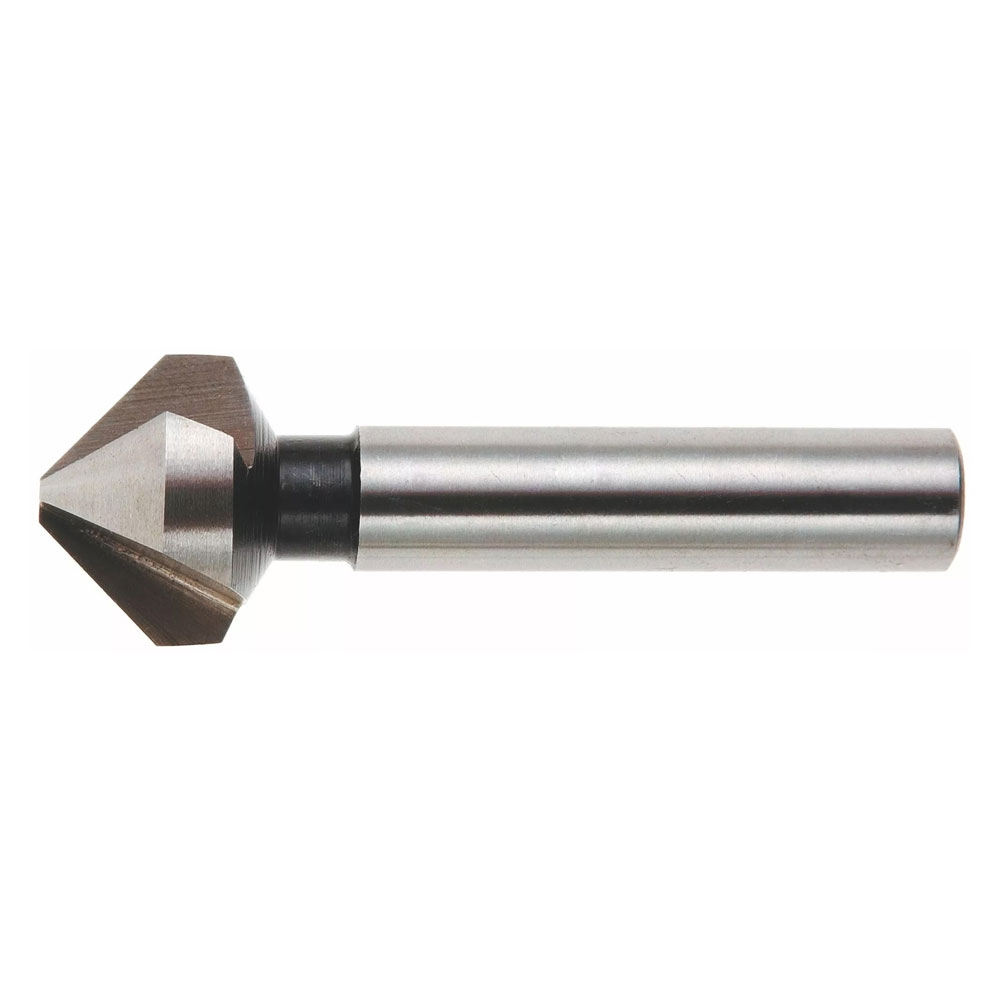

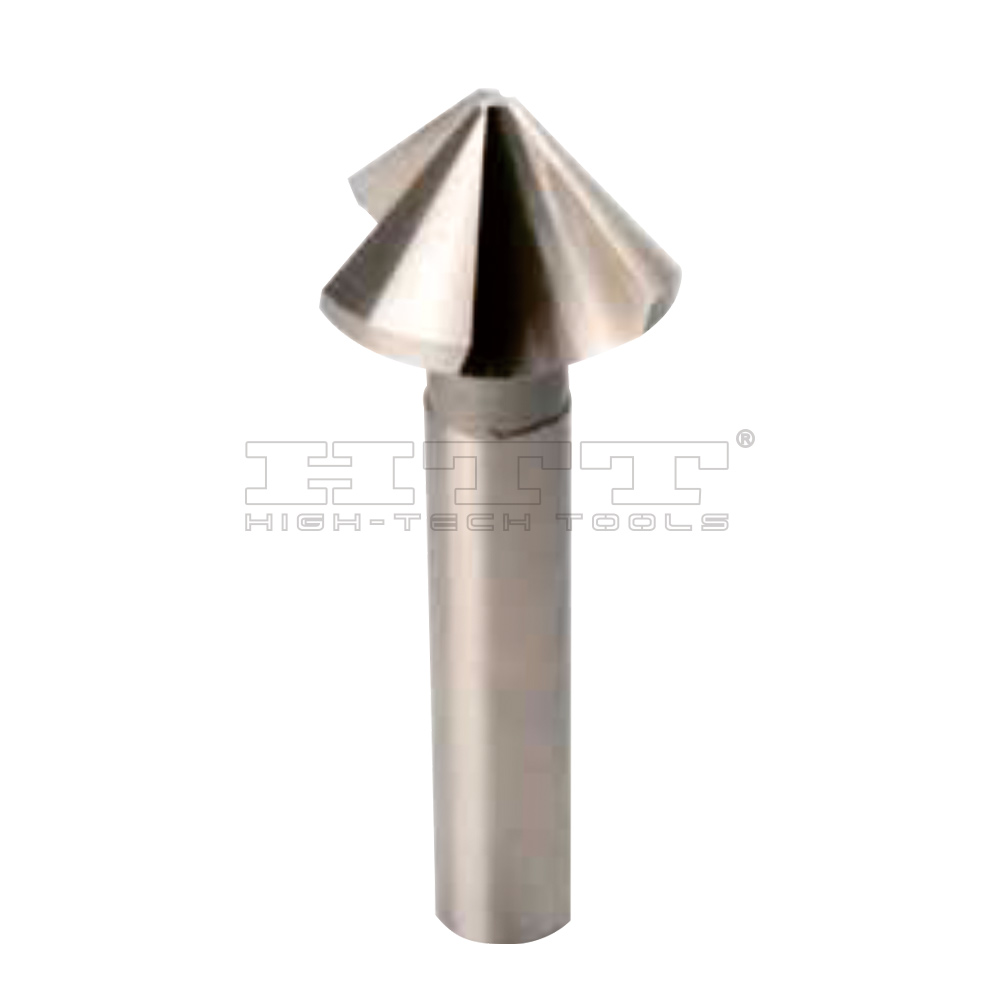

Serie 922
HTT, OEM job
MPP +
A biselar o debutar una variedad de acero, aleaciones, materiales plásticos y sintéticos, etc.
922
4.3 a 40mm
Cilindro
Trabajo en metal
| Cantidad: | |
|---|---|
Tabla de tamaño:
| Número de artículo | Diámetro (mm) | Diámetro superior (mm) | Diámetro de vástago (mm) | Longitud total (mm) |
| 922.043040 | 4.30 | 1.30 | 4 | 40 |
| 922.048040 | 4.80 | 1.50 | 4 | 40 |
| 922.050040 | 5.00 | 1.50 | 4 | 40 |
| 922.053040 | 5.30 | 1.50 | 4 | 40 |
| 922.058045 | 5.80 | 1.50 | 5 | 45 |
| 922.060045 | 6.00 | 1.50 | 5 | 45 |
| 922.063045 | 6.30 | 1.50 | 5 | 45 |
| 922.070050 | 7.00 | 1.80 | 6 | 50 |
| 922.073050 | 7.30 | 1.80 | 6 | 50 |
| 922.080050 | 8.00 | 2.00 | 6 | 50 |
| 922.083050 | 8.30 | 2.00 | 6 | 50 |
| 922.094050 | 9.40 | 2.20 | 6 | 50 |
| 922.100050 | 10.00 | 2.50 | 6 | 50 |
| 922.104050 | 10.40 | 2.50 | 6 | 50 |
| 922.115056 | 11.50 | 2.80 | 8 | 56 |
| 922.124056 | 12.40 | 2.80 | 8 | 56 |
| 922.134056 | 13.40 | 2.90 | 8 | 56 |
| 922.150060 | 15.00 | 3.20 | 10 | 60 |
| 922.165060 | 16.50 | 3.20 | 8 | 60 |
| 922.165061 | 16.50 | 3.20 | 10 | 60 |
| 922.190063 | 19.00 | 3.50 | 10 | 63 |
| 922.205063 | 20.50 | 3.50 | 10 | 63 |
| 922.230067 | 23.00 | 3.80 | 10 | 67 |
| 922.250067 | 25.00 | 3.80 | 10 | 67 |
| 922.260071 | 26.00 | 3.90 | 12 | 71 |
| 922.280071 | 28.00 | 4.00 | 12 | 71 |
| 922.300071 | 30.00 | 4.10 | 12 | 71 |
| 922.310071 | 31.00 | 4.20 | 12 | 71 |
| 922.370090 | 37.00 | 4.80 | 12 | 90 |
| 922.400080 | 40.00 | 10.00 | 15 | 80 |
