335-BevelTrim2F
OEM, 3WIN, HTT
MPP +
Hacer bisas y recortes de bisel en varios madera, a bordo, madera contrachapada, MDF, laminados, etc.
335
17.2 mm a 65 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

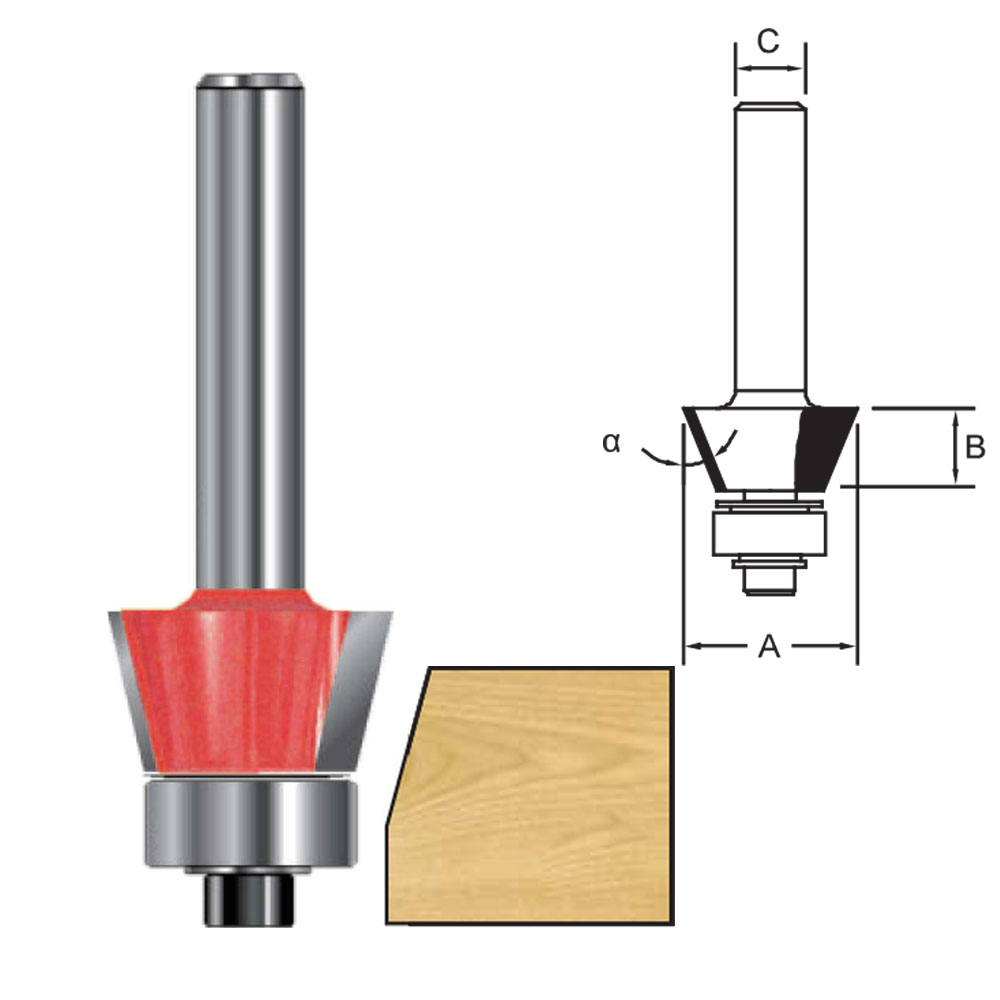

Tabla de tamaño:
| Número de artículo | A (mm) | B (mm) | A (grados) | C (mm) | Longitud de la vástago (mm) | Tamaño del rodamiento (OD X ID x Grosor) |
| 335.11317953206 | 17.2 | 9.53 | 15 ° | 6 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11320953206 | 19.8 | 9.53 | 22 ° | 6 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11323953206 | 23 | 9.53 | 30 ° | 6 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11336123206 | 35.9 | 11.95 | 45 ° | 6 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11332953206 | 31.7 | 9.5 | 45 ° | 6 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11317953208 | 17.2 | 9.53 | 15 ° | 8 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11320953208 | 19.8 | 9.53 | 22 ° | 8 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11323953208 | 23 | 9.53 | 30 ° | 8 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11336123208 | 35.9 | 11.95 | 45 ° | 8 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11332953208 | 31.7 | 9.5 | 45 ° | 8 | 32 | 1/2 x 3/16 x 5 mm |
| 335.11317954012 | 17.2 | 9.53 | 15 ° | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.11320954012 | 19.8 | 9.53 | 22 ° | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.11323954012 | 23 | 9.53 | 30 ° | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.11336124012 | 35.9 | 11.95 | 45 ° | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.11332954012 | 31.7 | 9.5 | 45 ° | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.11365264012 | 65 | 26 | 45 ° | 12 | 40 | 1/2 x 3/16 x 5 mm |
