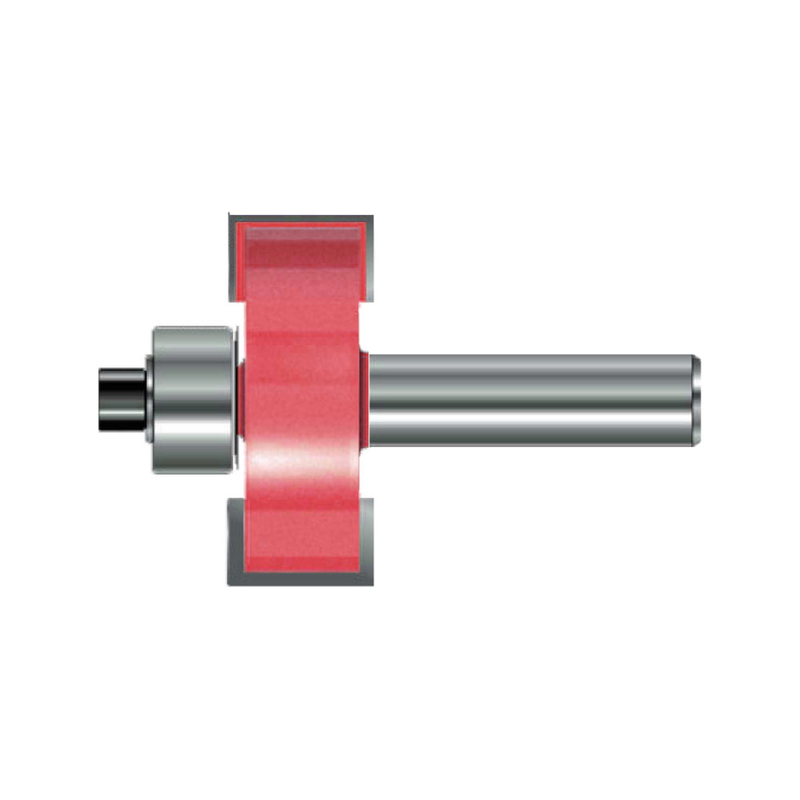

335-TS
OEM, 3WIN, HTT
MPP +
Para hacer ranuras de tragamonedas en varios de madera, aglomerado, madera contrachapada, MDF, laminado, etc.
335
31.8 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

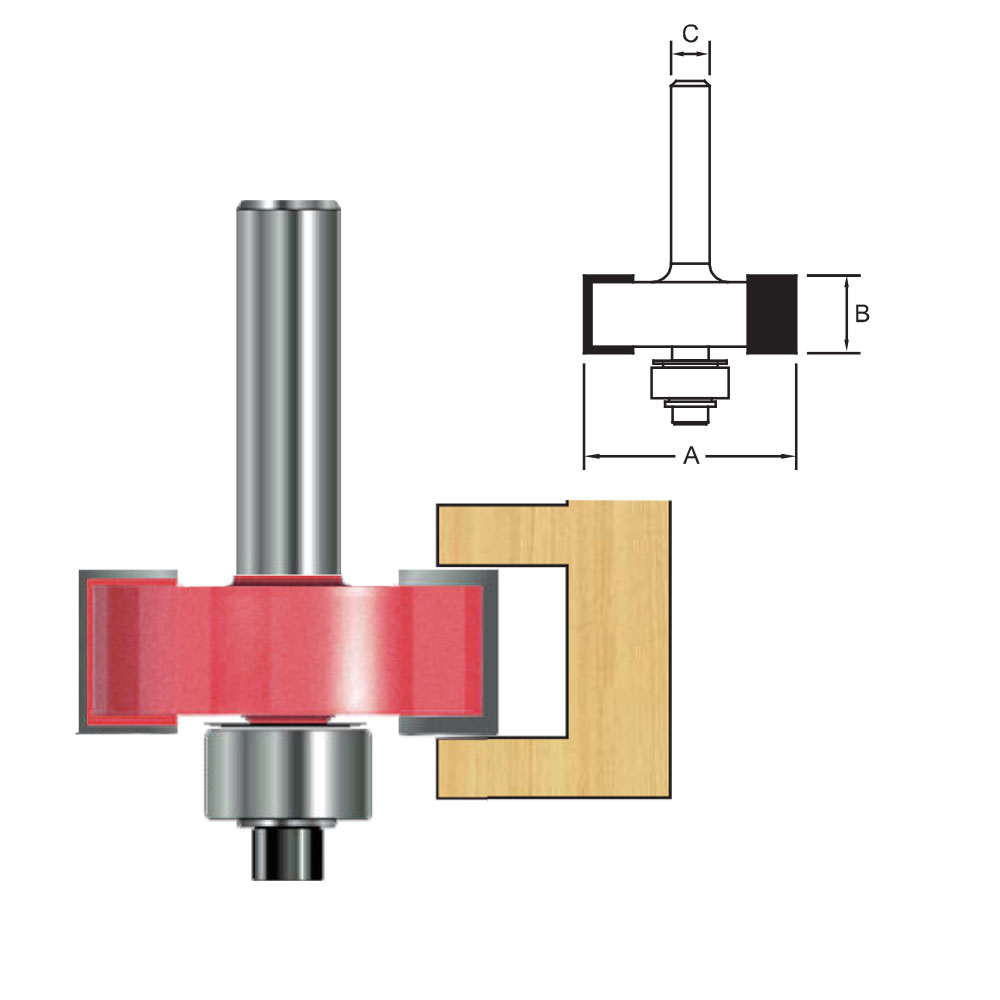

Tabla de tamaño:
| Número de artículo | A (mm) | B (mm) | Tamaño del modelo de rodamiento | Diámetro de vástago (mm) | Longitud de la vástago (mm) |
| 335.1520306 | 31.8 | 3.18 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1520406 | 31.8 | 4.76 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1520606 | 31.8 | 6.35 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1520706 | 31.8 | 7.94 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1520906 | 31.8 | 9.5 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1521206 | 31.8 | 12.7 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1520308 | 31.8 | 3.18 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1520408 | 31.8 | 4.76 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1520608 | 31.8 | 6.35 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1520708 | 31.8 | 7.94 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1520908 | 31.8 | 9.5 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1521208 | 31.8 | 12.7 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1520312 | 31.8 | 3.18 | 1/2 "x3/16 " x5 mm | 12 | 40 |
| 335.1520412 | 31.8 | 4.76 | 1/2 "x3/16 " x5 mm | 12 | 40 |
| 335.1520612 | 31.8 | 6.35 | 1/2 "x3/16 " x5 mm | 12 | 40 |
| 335.1520712 | 31.8 | 7.94 | 1/2 "x3/16 " x5 mm | 12 | 40 |
| 335.1520912 | 31.8 | 9.5 | 1/2 "x3/16 " x5 mm | 12 | 40 |
| 335.1521212 | 31.8 | 12.7 | 1/2 "x3/16 " x5 mm | 12 | 40 |
