335-dogee2f
OEM, 3WIN, HTT
MPP +

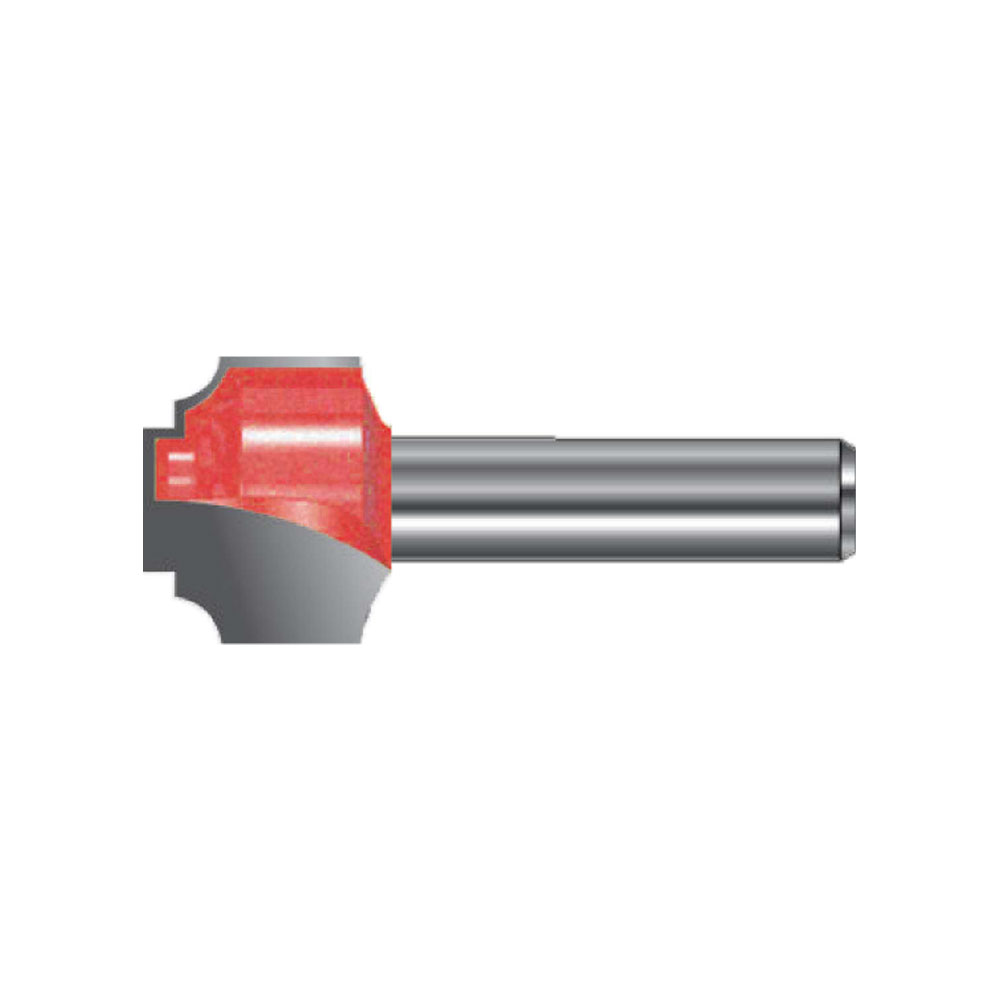

Hacer ogee decorativo ranurando en varios madera, a bordo, madera contrachapada, MDF, laminado, etc.
335
12.7 mm a 19.05 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

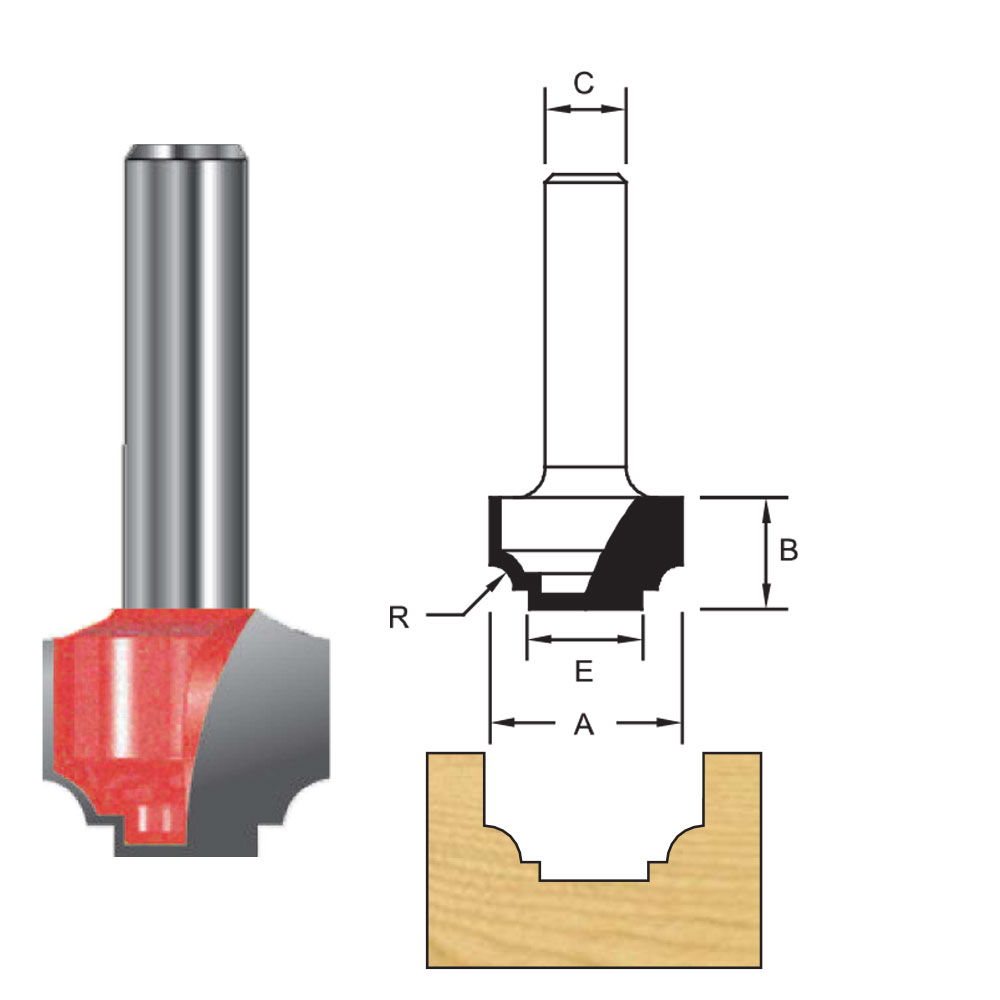

Tabla de tamaño:
| Número de artículo | R (mm) | A (mm) | B (mm) | E (mm) | C (mm) | Longitud de la vástago (mm) |
| 335.12613133206 | 1.2 | 12.7 | 12.7 | 8.4 | 6 | 32 |
| 335.12613093206 | 1.98 | 12.7 | 9.52 | 8.7 | 6 | 32 |
| 335.12619113206 | 2.4 | 19 | 11 | 11.1 | 6 | 32 |
| 335.12619123206 | 3.18 | 19.05 | 11.11 | 9.5 | 6 | 32 |
| 335.12613133208 | 1.2 | 12.7 | 12.7 | 8.4 | 8 | 32 |
| 335.12613093208 | 1.98 | 12.7 | 9.52 | 8.7 | 8 | 32 |
| 335.12619113208 | 2.4 | 19 | 11 | 11.1 | 8 | 32 |
| 335.12619123208 | 3.18 | 19.05 | 11.11 | 9.5 | 8 | 32 |
| 335.12613134012 | 1.2 | 12.7 | 12.7 | 8.4 | 12 | 40 |
| 335.12613094012 | 1.98 | 12.7 | 9.52 | 8.7 | 12 | 40 |
| 335.12619114012 | 2.4 | 19 | 11 | 11.1 | 12 | 40 |
| 335.12619124012 | 3.18 | 19.05 | 11.11 | 9.5 | 12 | 40 |
Tabla de tamaño:
| Número de artículo | R (mm) | A (mm) | B (mm) | E (mm) | C (mm) | Longitud de la vástago (mm) |
| 335.12613133206 | 1.2 | 12.7 | 12.7 | 8.4 | 6 | 32 |
| 335.12613093206 | 1.98 | 12.7 | 9.52 | 8.7 | 6 | 32 |
| 335.12619113206 | 2.4 | 19 | 11 | 11.1 | 6 | 32 |
| 335.12619123206 | 3.18 | 19.05 | 11.11 | 9.5 | 6 | 32 |
| 335.12613133208 | 1.2 | 12.7 | 12.7 | 8.4 | 8 | 32 |
| 335.12613093208 | 1.98 | 12.7 | 9.52 | 8.7 | 8 | 32 |
| 335.12619113208 | 2.4 | 19 | 11 | 11.1 | 8 | 32 |
| 335.12619123208 | 3.18 | 19.05 | 11.11 | 9.5 | 8 | 32 |
| 335.12613134012 | 1.2 | 12.7 | 12.7 | 8.4 | 12 | 40 |
| 335.12613094012 | 1.98 | 12.7 | 9.52 | 8.7 | 12 | 40 |
| 335.12619114012 | 2.4 | 19 | 11 | 11.1 | 12 | 40 |
| 335.12619124012 | 3.18 | 19.05 | 11.11 | 9.5 | 12 | 40 |
