335-stimmingcutter2f
OEM, 3WIN, HTT
MPP +

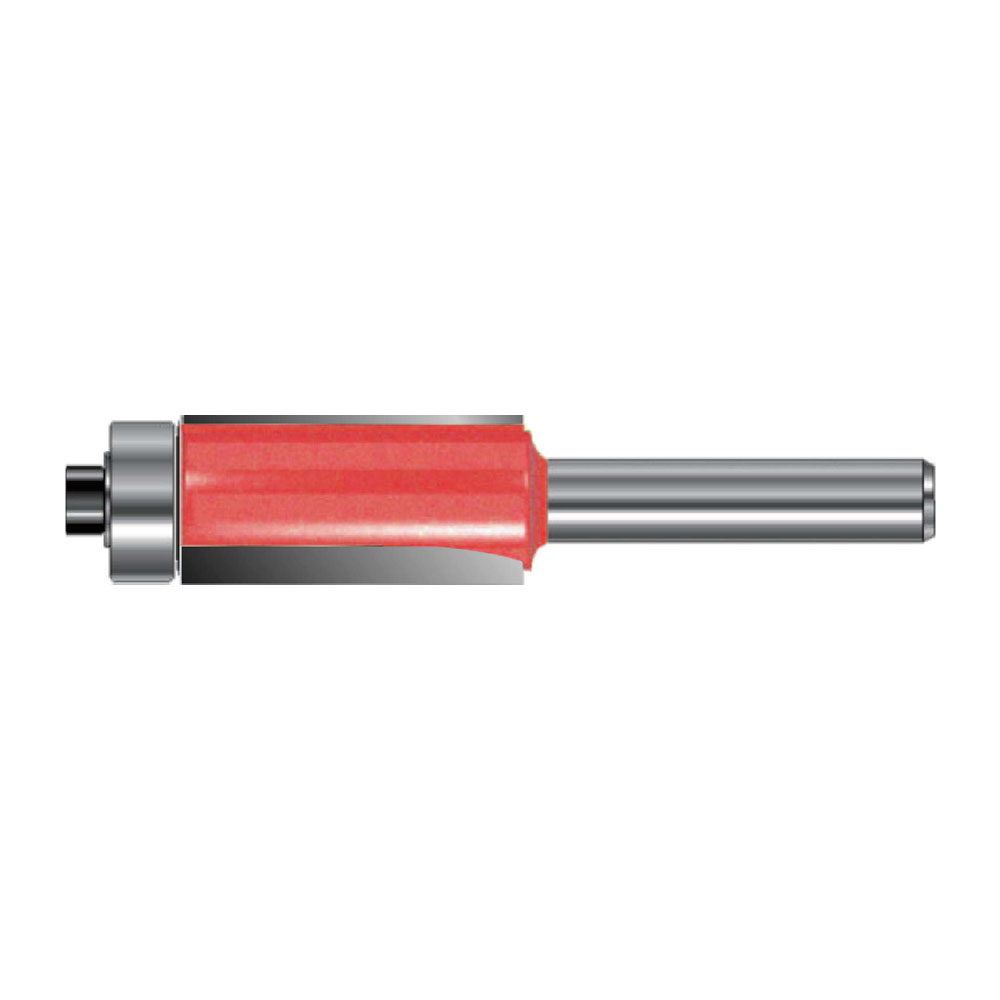

Para hacer trabajos de corte de inmersión y fresado en varias madera, tabla de madera, MDF, etc.
335
6.35 mm a 22 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

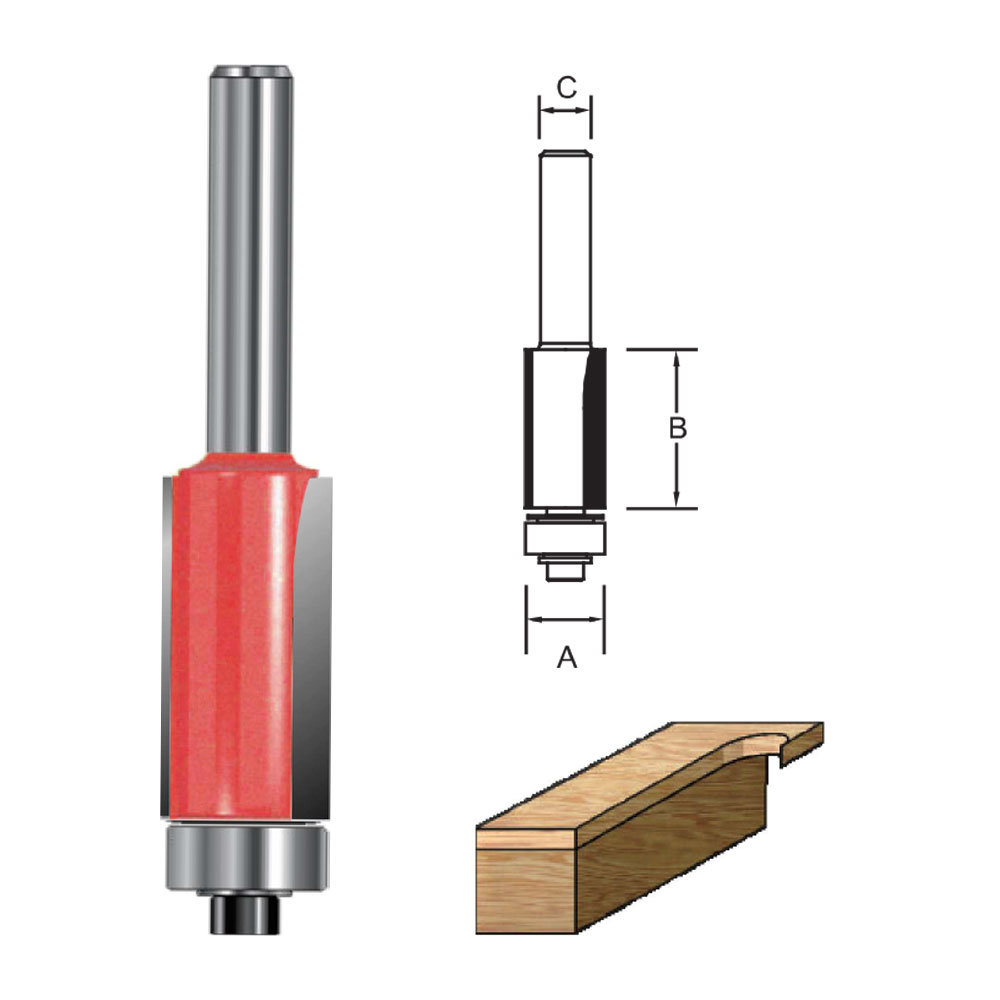

Tabla de tamaño:
| Número de artículo | A (mm) | B (mm) | C (mm) | Longitud de la vástago (mm) | Tamaño del rodamiento (OD X ID x Grosor) |
| 335.10606193206 | 6.35 | 19 | 6 | 32 | 1/4 x 1/8 x 7/64 |
| 335.10609123206 | 9.53 | 12.7 | 6 | 32 | 3/8 x 3/16 x 1/8 |
| 335.10609253206 | 9.53 | 25.4 | 6 | 32 | 3/8 x 3/16 x 1/8 |
| 335.10612123206 | 12.7 | 12.7 | 6 | 32 | 1/2 x 3/16 x 5 mm |
| 335.10612253206 | 12.7 | 25.4 | 6 | 32 | 1/2 x 3/16 x 5 mm |
| 335.10612323206 | 12.7 | 31.8 | 6 | 32 | 1/2 x 3/16 x 5 mm |
| 335.10619163206 | 19 | 16 | 6 | 32 | 19 mm x 6 mm x 6 mm |
| 335.10606193208 | 6.35 | 19 | 8 | 32 | 1/4 x 1/8 x 7/64 |
| 335.10609123208 | 9.53 | 12.7 | 8 | 32 | 3/8 x 3/16 x 1/8 |
| 335.10609253208 | 9.53 | 25.4 | 8 | 32 | 3/8 x 3/16 x 1/8 |
| 335.10612123208 | 12.7 | 12.7 | 8 | 32 | 1/2 x 3/16 x 5 mm |
| 335.10612253208 | 12.7 | 25.4 | 8 | 32 | 1/2 x 3/16 x 5 mm |
| 335.10612323208 | 12.7 | 31.8 | 8 | 32 | 1/2 x 3/16 x 5 mm |
| 335.10612383208 | 12.7 | 38.1 | 8 | 32 | 1/2 x 3/16 x 5 mm |
| 335.10619253208 | 19.05 | 25.4 | 8 | 32 | 3/4 x 1/4 x 9/32 |
| 335.10606194012 | 6.35 | 19 | 12 | 40 | 1/4 x 1/8 x 7/64 |
| 335.10609124012 | 9.53 | 12.7 | 12 | 40 | 3/8 x 3/16 x 1/8 |
| 335.10609254012 | 9.53 | 25.4 | 12 | 40 | 3/8 x 3/16 x 1/8 |
| 335.10612124012 | 12.7 | 12.7 | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.10612254012 | 12.7 | 25.4 | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.10612324012 | 12.7 | 31.8 | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.10612384012 | 12.7 | 38.1 | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.10612504012 | 12.7 | 50.8 | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.10612604012 | 12.7 | 60 | 12 | 40 | 1/2 x 3/16 x 5 mm |
| 335.10619254012 | 19.05 | 25.4 | 12 | 40 | 3/4 x 1/4 x 9/32 |
| 335.10622254012 | 22 | 25.4 | 12 | 40 | 22 mm x 8 mm x 7 mm |
