335-BearingCB2F
OEM, 3WIN, HTT
MPP +
Para hacer una ranura de cuentas en varios de madera, aglomerado, madera contrachapada, MDF, laminado, etc.
335
22 mm a 35 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

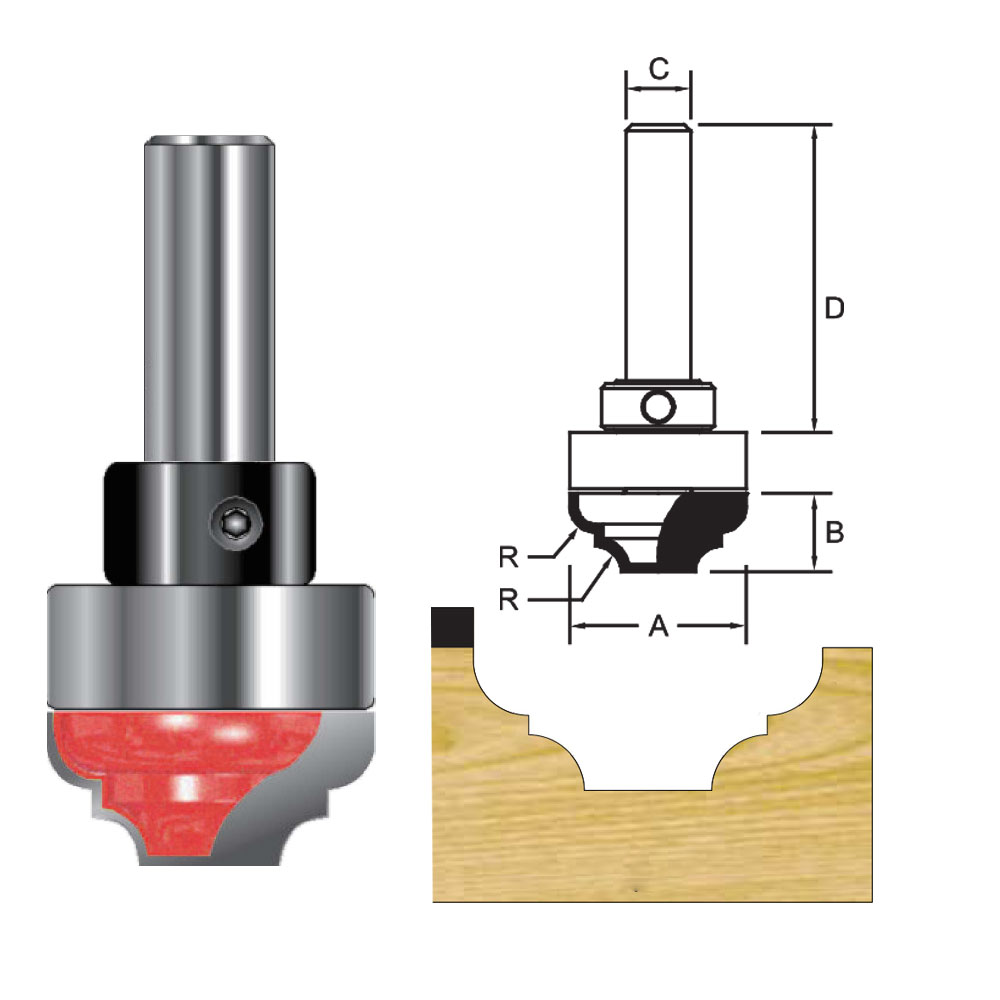

Tabla de tamaño:
| Número de artículo | R (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Tamaño del rodamiento (OD X ID x Grosor) |
| 335.13622104006 | 3.175 | 22 | 9.9 | 6 | 40 | 22 mm x 6 mm x 7 mm |
| 335.13622104008 | 3.175 | 22 | 9.9 | 8 | 40 | 22 mm x 8 mm x 7 mm |
| 335.13629134008 | 4 | 28.6 | 13.3 | 8 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13635194008 | 4.76+6.35 | 35 | 18.5 | 8 | 40 | 35 mm x 10 mm x 11 mm |
| 335.13635144008 | 5.55 | 35 | 14.3 | 8 | 40 | 35 mm x 15 mm x 11 mm |
| 335.13622104012 | 3.175 | 22 | 9.9 | 12 | 40 | 22 mm x 16 mm x 4 mm |
| 335.13629134012 | 4 | 28.6 | 13.3 | 12 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13635144012 | 5.55 | 35 | 14.3 | 12 | 40 | 35 mm x 15 mm x 11 mm |
Tabla de tamaño:
| Número de artículo | R (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Tamaño del rodamiento (OD X ID x Grosor) |
| 335.13622104006 | 3.175 | 22 | 9.9 | 6 | 40 | 22 mm x 6 mm x 7 mm |
| 335.13622104008 | 3.175 | 22 | 9.9 | 8 | 40 | 22 mm x 8 mm x 7 mm |
| 335.13629134008 | 4 | 28.6 | 13.3 | 8 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13635194008 | 4.76+6.35 | 35 | 18.5 | 8 | 40 | 35 mm x 10 mm x 11 mm |
| 335.13635144008 | 5.55 | 35 | 14.3 | 8 | 40 | 35 mm x 15 mm x 11 mm |
| 335.13622104012 | 3.175 | 22 | 9.9 | 12 | 40 | 22 mm x 16 mm x 4 mm |
| 335.13629134012 | 4 | 28.6 | 13.3 | 12 | 40 | 1-1/8 x 1/2 x 5/16 |
| 335.13635144012 | 5.55 | 35 | 14.3 | 12 | 40 | 35 mm x 15 mm x 11 mm |
