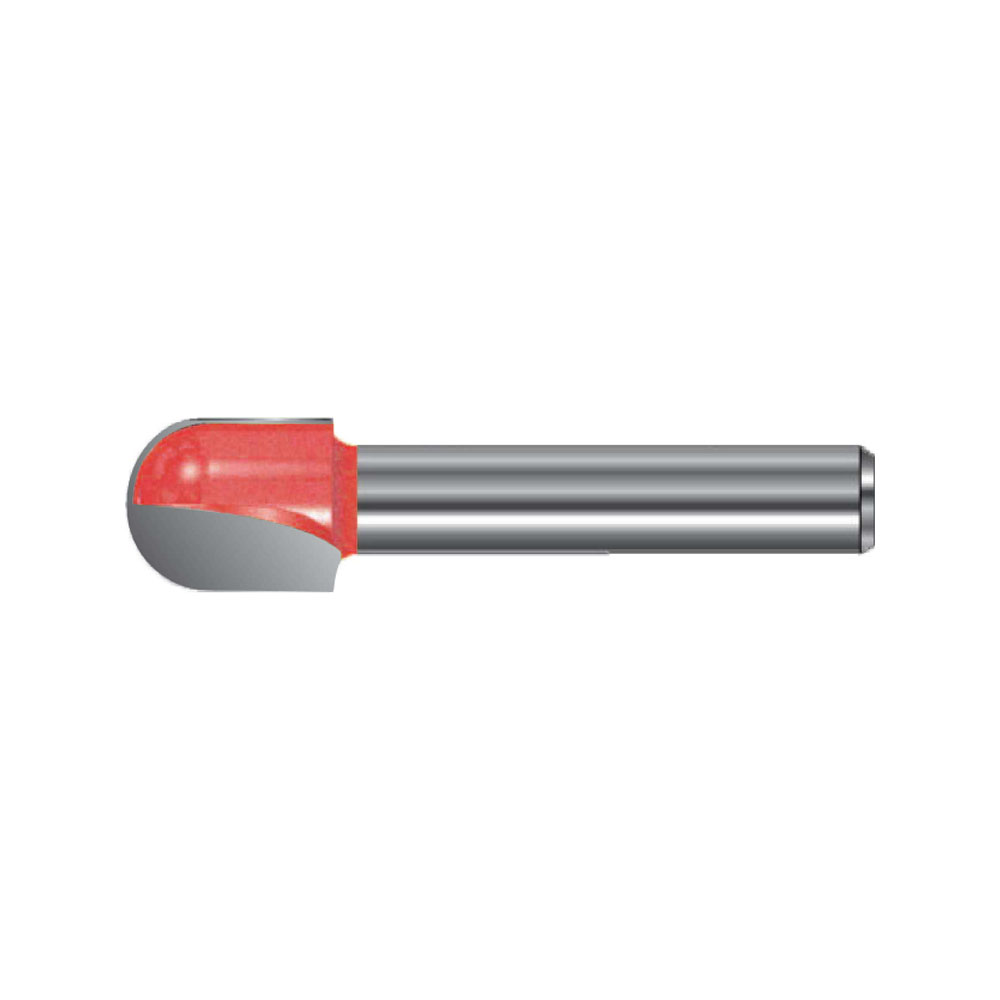

335 RoundNose2F
OEM, 3WIN, HTT
MPP +
Para hacer la nariz redonda ranurando en varios de madera, aglomerado, madera contrachapada, MDF, laminado, etc.
335
3 mm a 12.7 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

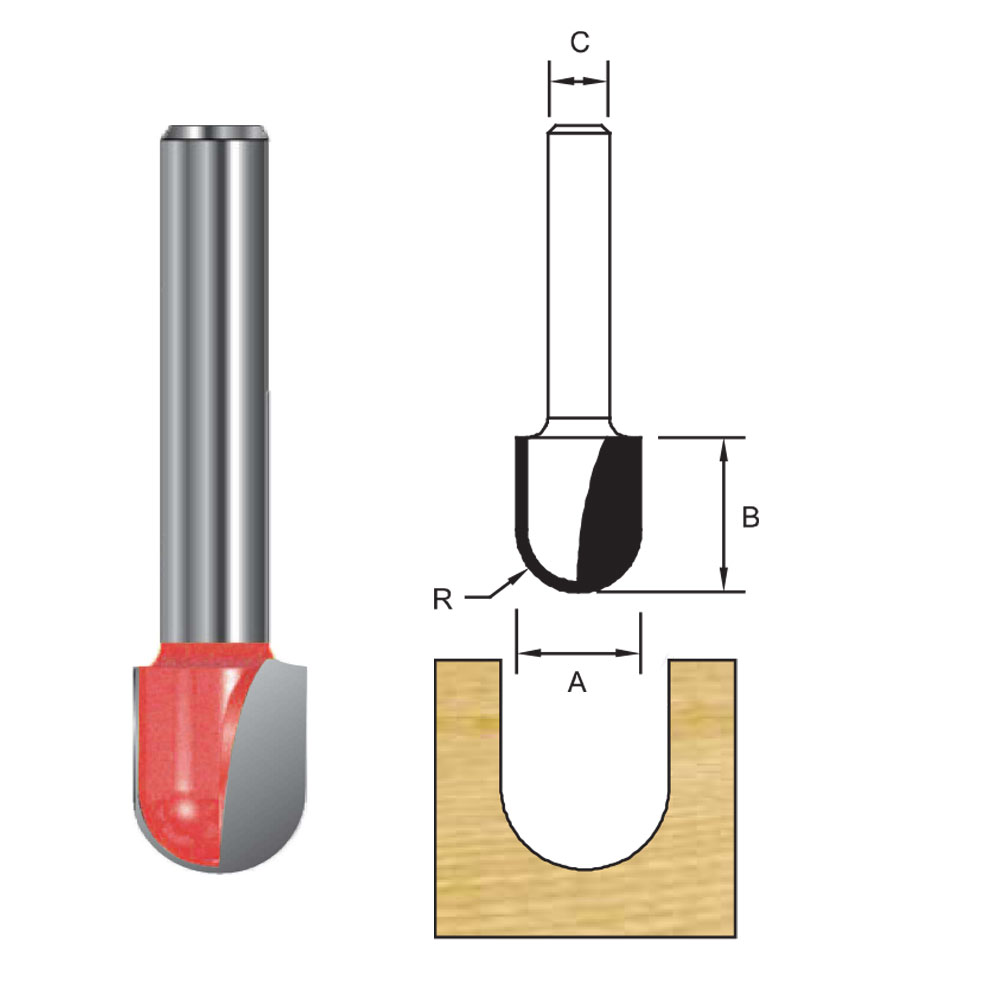

Tabla de tamaño:
| Número de artículo | R (mm) | A (mm) | B (mm) | C (mm) | Longitud de la vástago (mm) |
| 335.12006133206 | 3 | 6 | 12.7 | 6 | 32 |
| 335.12009133206 | 4.76 | 9.5 | 12.7 | 6 | 32 |
| 335.12009193206 | 4.76 | 9.5 | 19 | 6 | 32 |
| 335.12013163206 | 6.35 | 12.7 | 15.9 | 6 | 32 |
| 335.12006133208 | 3 | 6 | 12.7 | 8 | 32 |
| 335.12009133208 | 4.76 | 9.5 | 12.7 | 8 | 32 |
| 335.12009193208 | 4.76 | 9.5 | 19 | 8 | 32 |
| 335.12013163208 | 6.35 | 12.7 | 15.9 | 8 | 32 |
| 335.12009134012 | 4.76 | 9.5 | 12.7 | 12 | 40 |
| 335.12009194012 | 4.76 | 9.5 | 19 | 12 | 40 |
| 335.12013164012 | 6.35 | 12.7 | 15.9 | 12 | 40 |
| 335.12013324012 | 6.35 | 12.7 | 31.8 | 12 | 40 |
| 335.12016324012 | 7.94 | 15.9 | 31.8 | 12 | 40 |
| 335.12019324012 | 9.5 | 19 | 31.8 | 12 | 40 |
| 335.12025324012 | 12.7 | 25.4 | 31.8 | 12 | 40 |
Tabla de tamaño:
| Número de artículo | R (mm) | A (mm) | B (mm) | C (mm) | Longitud de la vástago (mm) |
| 335.12006133206 | 3 | 6 | 12.7 | 6 | 32 |
| 335.12009133206 | 4.76 | 9.5 | 12.7 | 6 | 32 |
| 335.12009193206 | 4.76 | 9.5 | 19 | 6 | 32 |
| 335.12013163206 | 6.35 | 12.7 | 15.9 | 6 | 32 |
| 335.12006133208 | 3 | 6 | 12.7 | 8 | 32 |
| 335.12009133208 | 4.76 | 9.5 | 12.7 | 8 | 32 |
| 335.12009193208 | 4.76 | 9.5 | 19 | 8 | 32 |
| 335.12013163208 | 6.35 | 12.7 | 15.9 | 8 | 32 |
| 335.12009134012 | 4.76 | 9.5 | 12.7 | 12 | 40 |
| 335.12009194012 | 4.76 | 9.5 | 19 | 12 | 40 |
| 335.12013164012 | 6.35 | 12.7 | 15.9 | 12 | 40 |
| 335.12013324012 | 6.35 | 12.7 | 31.8 | 12 | 40 |
| 335.12016324012 | 7.94 | 15.9 | 31.8 | 12 | 40 |
| 335.12019324012 | 9.5 | 19 | 31.8 | 12 | 40 |
| 335.12025324012 | 12.7 | 25.4 | 31.8 | 12 | 40 |
