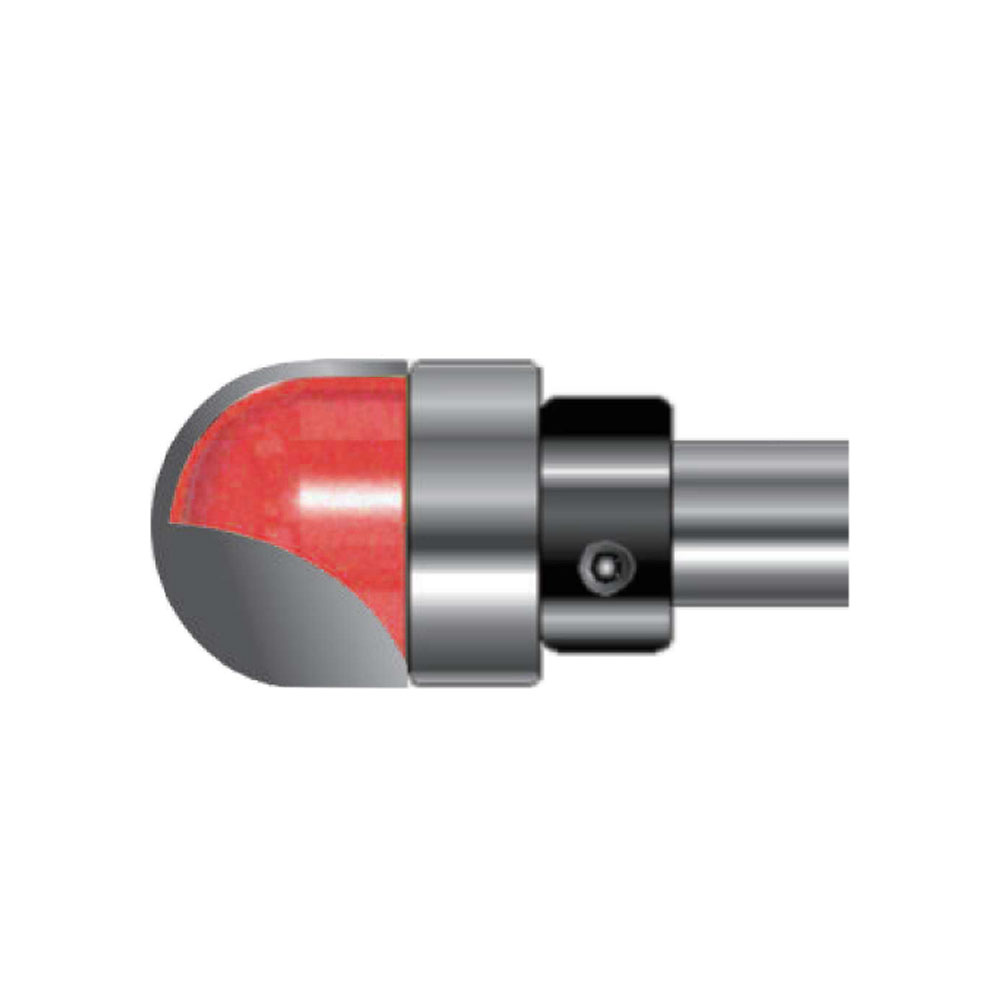

335-BearingCoreBRN2F
OEM, 3WIN, HTT
MPP +
Hacer ranuras redondas en varios de madera, a bordo, madera contrachapada, MDF, laminado, etc.
335
12 mm a 25,4 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

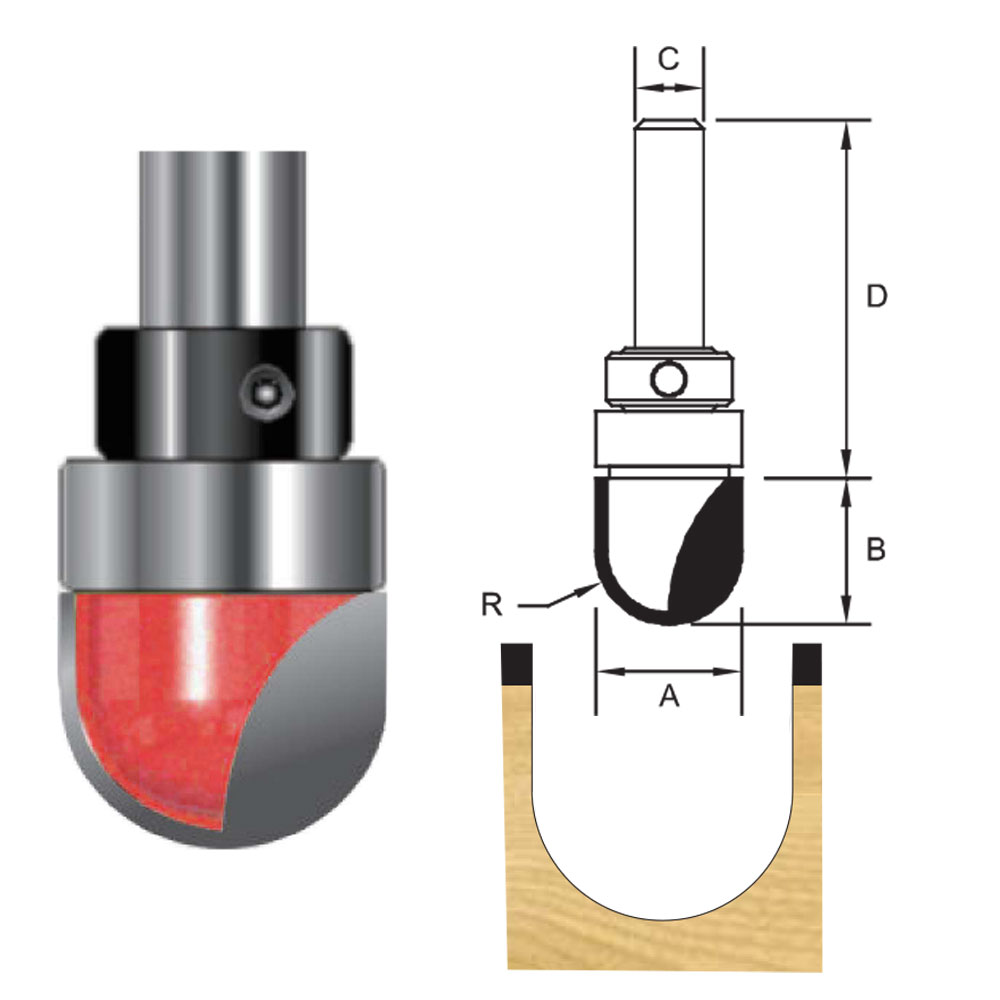

Tabla de tamaño:
| Número de artículo | R (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Tamaño del rodamiento (OD X ID x Grosor) |
| 335.13412123806 | 6 | 12 | 12 | 6 | 38 | 12 mm x 6 mm x 4 mm |
| 335.13412163806 | 6 | 12 | 16 | 6 | 38 | 12 mm x 6 mm x 4 mm |
| 335.13413133806 | 6.35 | 12.7 | 12.7 | 6 | 38 | 1/2 x 1/4 x 3/16 |
| 335.13412123808 | 6 | 12 | 12 | 8 | 38 | 12 mm x 8 mm x 3.5 mm |
| 335.13412163808 | 6 | 12 | 16 | 8 | 38 | 12 mm x 8 mm x 3.5 mm |
| 335.13416093808 | 8 | 16 | 9.5 | 8 | 38 | 16 mm x 8 mm x 5 mm |
| 335.13425194012 | 12.7 | 25.4 | 19 | 12 | 40 | 1 x 1/2 x 5 mm |
| 335.13425324012 | 12.7 | 25.4 | 31.8 | 12 | 40 | 1 x 1/2 x 5 mm |
