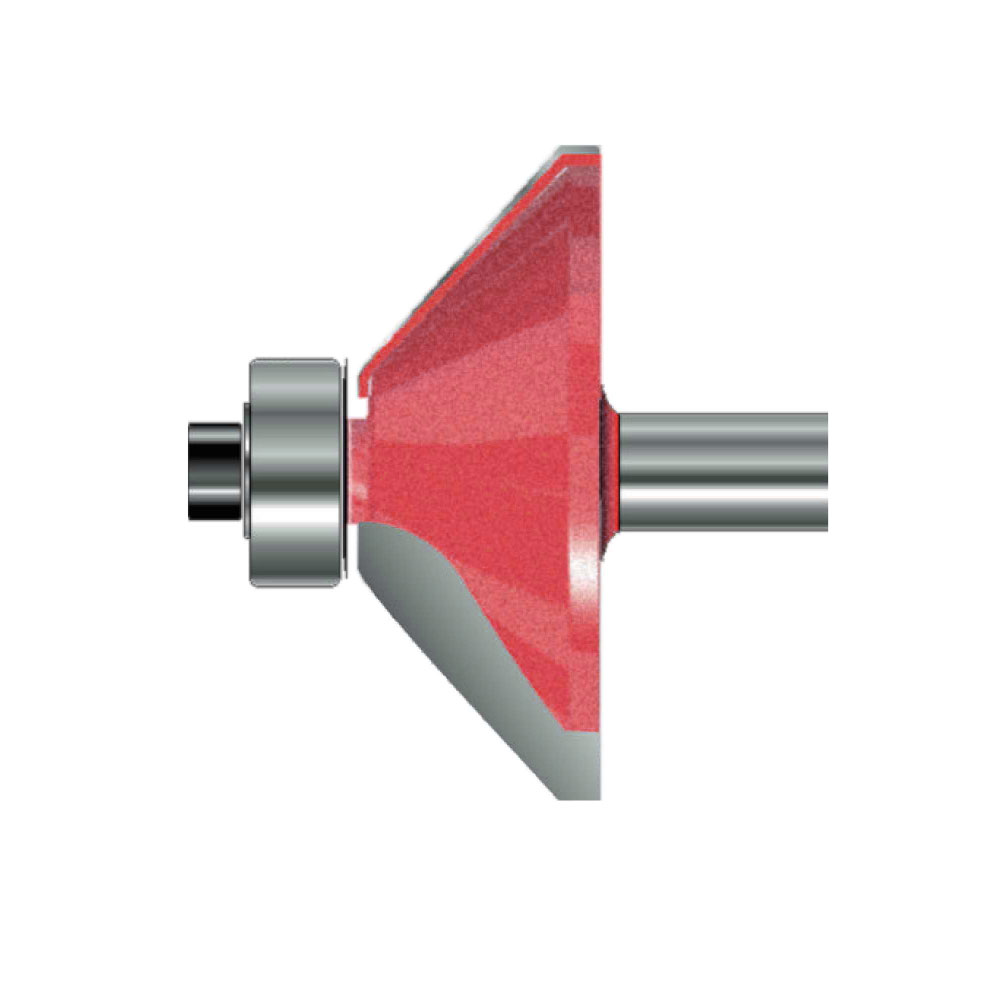

335-CCB45
OEM, 3WIN, HTT
MPP +
Para hacer ranuras de ranura en varios de madera, aglomerado, madera contrachapada, MDF, laminado, etc.
335
25.4 mm a 57.15 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

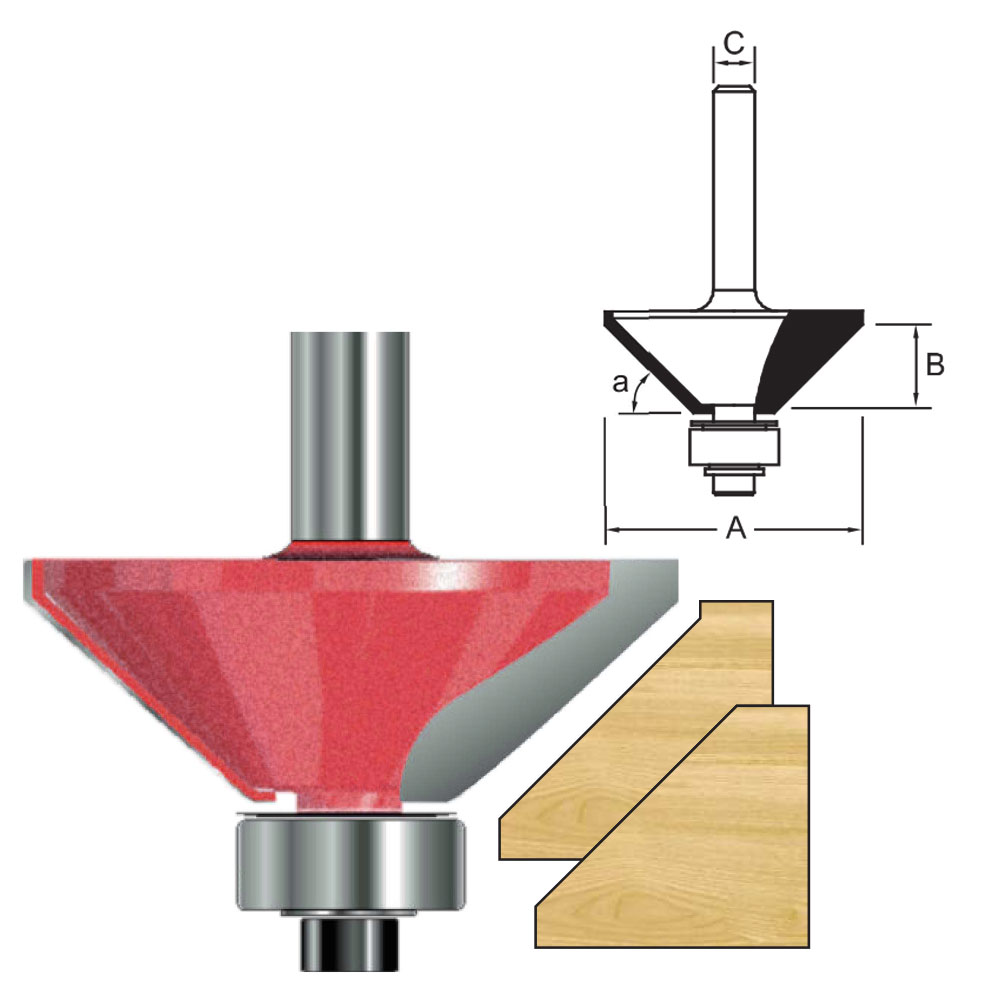

Tabla de tamaño:
| Número de artículo | a | A (mm) | B (mm) | Tamaño del modelo de rodamiento | Diámetro de vástago (mm) | Longitud de la vástago (mm) |
| 335.1502506 | 45 ° | 25.4 | 6.35 | 12.7 mm x 18 mm | 6 | 32 |
| 335.1502806 | 45 ° | 28.6 | 9.53 | 12.7 mm x 18 mm | 6 | 32 |
| 335.1503006 | 45 ° | 30.16 | 8.73 | 12.7 mm x 18 mm | 6 | 32 |
| 335.1503606 | 45 ° | 36.5 | 11.9 | 12.7 mm x 18 mm | 6 | 32 |
| 335.1502508 | 45 ° | 25.4 | 6.35 | 12.7 mm x 18 mm | 8 | 32 |
| 335.1502808 | 45 ° | 28.6 | 9.53 | 12.7 mm x 18 mm | 8 | 32 |
| 335.1503008 | 45 ° | 30.16 | 8.73 | 12.7 mm x 18 mm | 8 | 32 |
| 335.1503608 | 45 ° | 36.5 | 11.9 | 12.7 mm x 18 mm | 8 | 32 |
| 335.1502512 | 45 ° | 25.4 | 6.35 | 12.7 mm x 18 mm | 12 | 40 |
| 335.1502812 | 45 ° | 28.6 | 9.53 | 12.7 mm x 18 mm | 12 | 40 |
| 335.1503012 | 45 ° | 30.16 | 8.73 | 12.7 mm x 18 mm | 12 | 40 |
| 335.1503612 | 45 ° | 36.5 | 11.9 | 12.7 mm x 18 mm | 12 | 40 |
| 335.1504412 | 45 ° | 44.5 | 15.88 | 12.7 mm x 18 mm | 12 | 40 |
| 335.1504712 | 45 ° | 47.6 | 17.46 | 12.7 mm x 18 mm | 12 | 40 |
| 335.1505012 | 45 ° | 50.8 | 19.05 | 12.7 mm x 18 mm | 12 | 40 |
| 335.1505712 | 45 ° | 57.15 | 22.2 | 12.7 mm x 18 mm | 12 | 40 |
