335-barb
OEM, 3WIN, HTT
MPP +
Para hacer ranuras de ranura en varios de madera, aglomerado, madera contrachapada, MDF, laminado, etc.
335
28.6 mm a 50.8 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

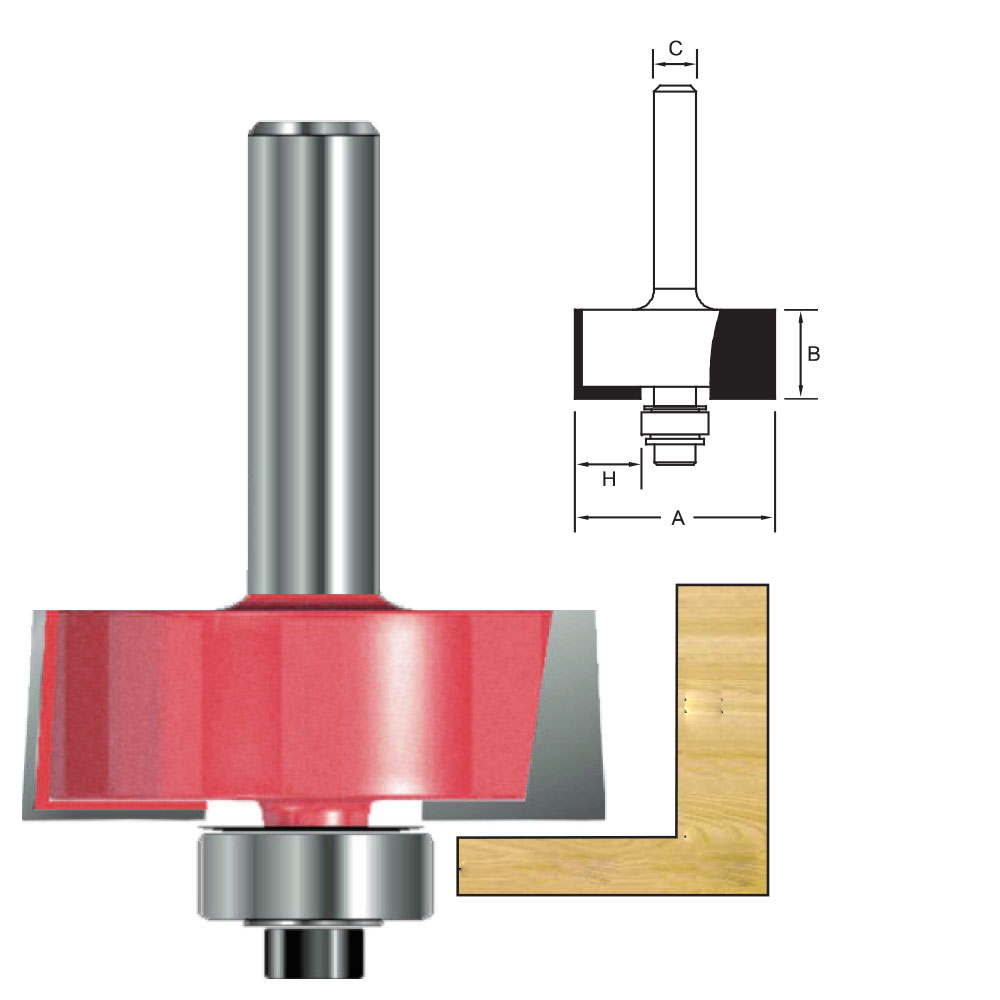

Tabla de tamaño:
| Número de artículo | Mmm) | A (mm) | B (mm) | Tamaño del modelo de rodamiento | Diámetro de vástago (mm) | Longitud de la vástago (mm) |
| 335.1532806 | 9.5 | 28.6 | 12.7 | 3/8 "x3/16 " x1/8 " | 6 | 32 |
| 335.1533106 | 9.5 | 31.7 | 12.7 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1533206 | 9.5 | 31.7 | 19 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1533506 | 12.7 | 34.9 | 12.7 | 3/8 "x3/16 " x1/8 " | 6 | 32 |
| 335.1533108 | 9.5 | 31.7 | 12.7 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1533208 | 9.5 | 31.7 | 19 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1533508 | 12.7 | 34.9 | 12.7 | 3/8 "x3/16 " x1/8 " | 8 | 32 |
| 335.1533112 | 9.5 | 31.7 | 12.7 | 1/2 "x3/16 " x5 mm | 12 | 40 |
| 335.1533212 | 9.5 | 31.7 | 19 | 1/2 "x3/16 " x5 mm | 12 | 40 |
| 335.1533512 | 12.7 | 34.9 | 12.7 | 3/8 "x3/16 " x1/8 " | 12 | 40 |
| 335.1533612 | 12.7 | 34.9 | 19 | 3/8 "x3/16 " x1/8 " | 12 | 40 |
Tabla de tamaño:
| Número de artículo | Mmm) | A (mm) | B (mm) | Tamaño del modelo de rodamiento | Diámetro de vástago (mm) | Longitud de la vástago (mm) |
| 335.1532806 | 9.5 | 28.6 | 12.7 | 3/8 "x3/16 " x1/8 " | 6 | 32 |
| 335.1533106 | 9.5 | 31.7 | 12.7 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1533206 | 9.5 | 31.7 | 19 | 1/2 "x3/16 " x5 mm | 6 | 32 |
| 335.1533506 | 12.7 | 34.9 | 12.7 | 3/8 "x3/16 " x1/8 " | 6 | 32 |
| 335.1533108 | 9.5 | 31.7 | 12.7 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1533208 | 9.5 | 31.7 | 19 | 1/2 "x3/16 " x5 mm | 8 | 32 |
| 335.1533508 | 12.7 | 34.9 | 12.7 | 3/8 "x3/16 " x1/8 " | 8 | 32 |
| 335.1533112 | 9.5 | 31.7 | 12.7 | 1/2 "x3/16 " x5 mm | 12 | 40 |
| 335.1533212 | 9.5 | 31.7 | 19 | 1/2 "x3/16 " x5 mm | 12 | 40 |
| 335.1533512 | 12.7 | 34.9 | 12.7 | 3/8 "x3/16 " x1/8 " | 12 | 40 |
| 335.1533612 | 12.7 | 34.9 | 19 | 3/8 "x3/16 " x1/8 " | 12 | 40 |
