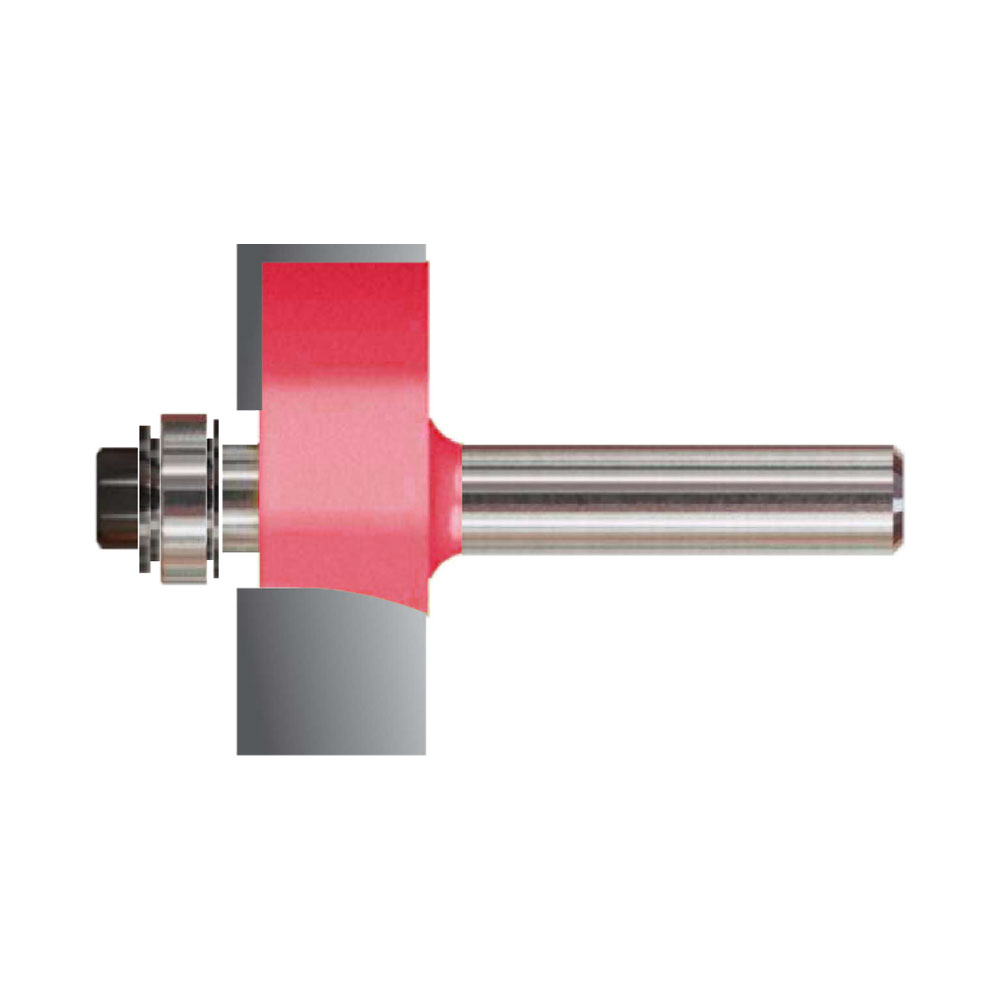

335-SBSRB
OEM, 3WIN, HTT
MPP +
Para hacer ranuras de ranura en varios de madera, aglomerado, madera contrachapada, MDF, laminado, etc.
335
34.9 mm
Cilíndrico
Trabajo en madera
| Cantidad: | |
|---|---|

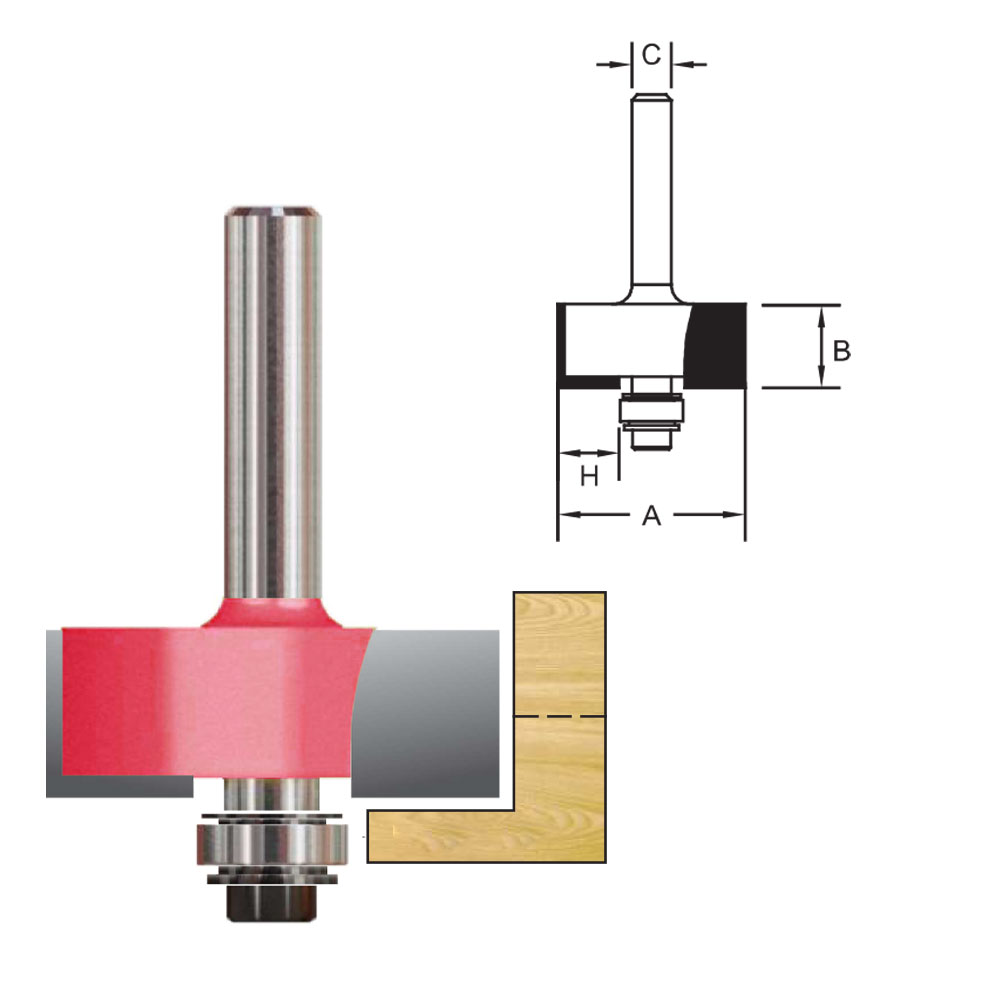

Tabla de tamaño:
| Número de artículo | Mmm) | A (mm) | B (mm) | Tamaño del modelo de rodamiento | Diámetro de vástago (mm) | Longitud de la vástago (mm) |
| 335.1543506 | 0-12.7 | 34.9 | 12.7 | 3/8 "x3/16 " x1/8 ", 7/8 " x3/16 "x5 mm, 1/2 " x3/16 "x5 mm, 1-1/8 "x3/16 " x5 mm, 5/8 "x3/16 " x5 mm, 1-3/8 "x3/16 " x5 mm, 3/4 "x3/16 " x5 mm | 6 | 32 |
| 335.1543508 | 0-12.7 | 34.9 | 12.7 | 3/8 "x3/16 " x1/8 ", 7/8 " x3/16 "x5mm, 1/2 " x3/16 "x5mm, 1-1/8 " x3/16 "x5 mm, 5/8 " x3/16 "x5 mm, 1-3/8 " x3/16 "x5 mm, 3/4 " x3/16 "x5 mm | 8 | 32 |
| 335.1543512 | 0-12.7 | 34.9 | 12.7 | 3/8 "x3/16 " x1/8 ", 7/8 " x3/16 "x5 mm, 1/2 " x3/16 "x5 mm, 1-1/8 "x3/16 " x5 mm, 5/8 "x3/16 " x5 mm, 1-3/8 "x3/16 " x5 mm, 3/4 "x3/16 " x5 mm | 12 | 40 |
| 335.1543606 | 0-12.7 | 34.9 | 19 | 3/8 "x3/16 " x1/8 ", 7/8 " x3/16 "x5 mm, 1/2 " x3/16 "x5 mm, 1-1/8 "x3/16 " x5 mm, 5/8 "x3/16 " x5 mm, 1-3/8 "x3/16 " x5 mm, 3/4 "x3/16 " x5 mm | 12 | 40 |
