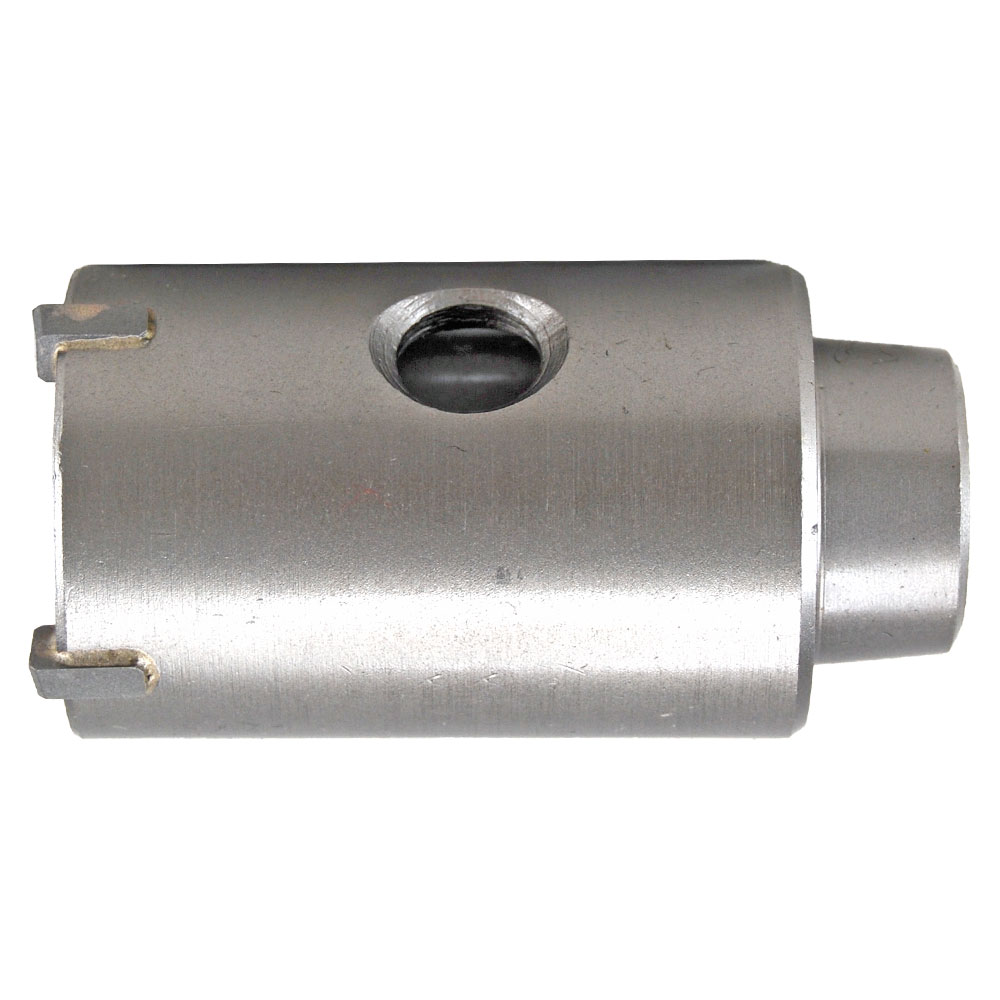

Taladro sacanúcleos TCT de servicio ligero M16

1, Alloy steel body supports the core drilling job in various concrete, brick, stone, etc. .
2, Carbide teeth brazed at high temperature to hold that carbide extra high durability.
3, Large diameter drilling and high resistance and long life time are guaranteed with high quality.
4, When mounting, make sure that the core bit is locked to the Male M16 threaded connector of the arbor.
5, Make a pre-drilling hole using only the TCT centre drill.
  • 7011

  • HTT, OEM job

  • MPP

  • Para perforar agujeros en varios concretos, ladrillos, piedra, etc. para terminar las obras sanitarias y de renovación.

  • 7011

  • 30-150mm; 1-3 / 16 "a 6 "

  • FEMAL M16

  • Trabajos de albañilería

Estado de Disponibilidad:
Cantidad:

Size Table:

DIN metric standard

Número de artículoDiámetro (mm)Max. Cutting Depth(mm)Overall Length(mm)Threaded Conneting
7011.030075305575Female M16
7011.035075355575Female M16
7011.040075405575Female M16
7011.045075 455575Female M16
7011.050075505575Female M16
7011.060075 605575Female M16
7011.066075 665575Female M16
7011.068075 685575Female M16
7011.070075 705575Female M16
7011.080075 805575Female M16
7011.090075 905575Female M16
7011.1000751005575Female M16
7011.110075 1105575Female M16
7011.125075 1255575Female M16
7011.1500751505575Female M16
7011.110120 TCT Pilot Drill Bit with flat shank , 8mm diameter x 90mm working length x 120mm overall length
7011.100000 100mm OL adapter with SDS-plus shank and Male M16 head and M6 bolt
7011.100006100mm OL adapter with 7/16\" Straight hex shank and Male M16 head and M6 bolt
7011.200000 200mm OL adapter with SDS-plus shank and Male M16 head and M6 bolt
7011.200000 Adaptador OL de 200 mm con vástago hexagonal de 7/16 \"y cabezal M16 masculino y perno M6
7011.000011 Clave de extracción con cadena de anillo


Tabla de tamaño:

Estándar ANSI

Número de artículoDiámetro (pulgada)Diámetro (mm)Max. Profundidad de corte (pulgada)Longitud total (pulgada)Conneting roscado
7011.13160031-3/16 \"302 \"3 \"Femenina M16
7011.13080031-3/8 \"352 \"3 \"Femenina M16
7011.11026031-1 / 2 \"382 \"3 \"Femenina M16
7011.13040031-3/4 \"452 \"3 \"Femenina M16
7011.20000032 \"512 \"3 \"Femenina M16
7011.21040032-1/4 \"572 \"3 \"Femenina M16
7011.25080032-5/8 \"672 \"3 \"Femenina M16
7011.23040032-3/4 \"702 \"3 \"Femenina M16
7011.31080033-1/8 \"792 \"3 \"Femenina M16
7011.39160033-9/16 \"902 \"3 \"Femenina M16
7011.40000034 \"1022 \"3 \"Femenina M16
7011.43080034-3/8 \"1112 \"3 \"Femenina M16
7011.50000035 \"1272 \"3 \"Femenina M16
7011.60000036 \"1522 \"3 \"Femenina M16
7011.0716412TCT Pilot Broad Bit con plano, 5/16 \"diámetro x 3-1/2 \" Longitud de trabajo x 4-1/2 \"Longitud total
7011.04000014 \"OL Adaptador con vástago SDS-plus y cabezal m16 masculino y perno M6
7011.04000064 \"OL Adaptador con 7/16 \" Vista hexagonal recta y cabezal m16 masculina y perno M6
7011.08000018 \"OL Adaptador con vástago SDS-plus y cabezal m16 masculino y perno M6
7011.08000068 \"OL Adaptador con 7/16 \" Vista hexagonal recta y cabezal m16 masculina y perno M6
7011.0000011Clave de extracción con cadena de anillo
