Serie 953
HTT , OEM job
HPP

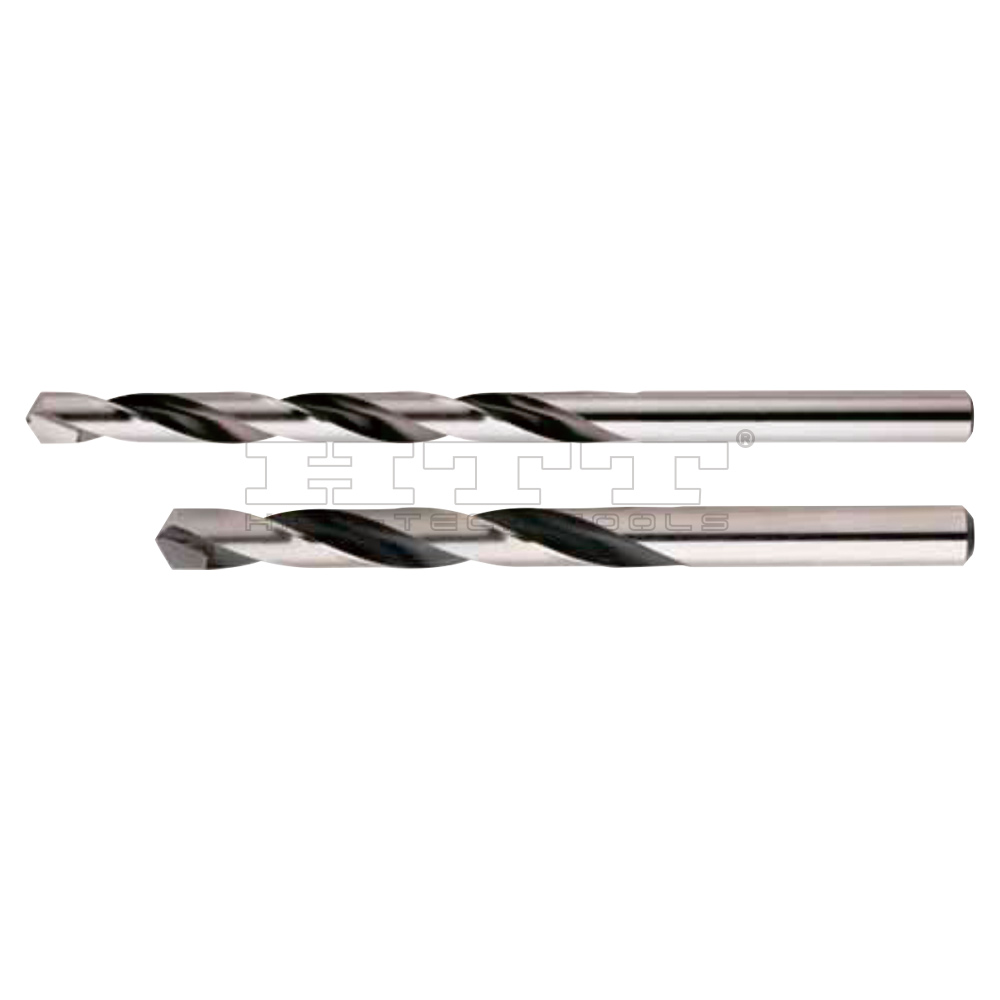

Para taladrar agujeros en acero de aleación, acero no aleado, hierro fundido, acero inoxidable, aluminio, aleación de titanio, cobre, plástico, etc.
953
1.5 a 20 mm
Cilindro
Trabajo en metal
| Cantidad: | |
|---|---|
Tabla de tamaño:
| Número de artículo | Diámetro (mm) | Longitud de trabajo (mm) | Longitud total (mm) |
| 953.015040 | 1.5 | 18 | 40 |
| 953.020049 | 2.0 | 24 | 49 |
| 953.025057 | 2.5 | 30 | 57 |
| 953.028061 | 2.8 | 33 | 61 |
| 953.030061 | 3.0 | 33 | 61 |
| 953.032065 | 3.2 | 36 | 65 |
| 953.033065 | 3.3 | 36 | 65 |
| 953.035070 | 3.5 | 39 | 70 |
| 953.040075 | 4.0 | 43 | 75 |
| 953.042075 | 4.2 | 43 | 75 |
| 953.045080 | 4.5 | 47 | 80 |
| 953.048086 | 4.8 | 52 | 86 |
| 953.050086 | 5.0 | 52 | 86 |
| 953.052086 | 5.2 | 52 | 86 |
| 953, .055093 | 5.5 | 57 | 93 |
| 953.060093 | 6.0 | 57 | 93 |
| 953, .065101 | 6.5 | 63 | 101 |
| 953.070109 | 7.0 | 69 | 109 |
| 953.075109 | 7.5 | 69 | 109 |
| 953.080117 | 8.0 | 75 | 117 |
| 953.090125 | 9.0 | 81 | 125 |
| 953.095125 | 9.5 | 81 | 125 |
| 953.100133 | 10.0 | 87 | 133 |
| 953.105133 | 10.5 | 87 | 133 |
| 953.110142 | 11.0 | 94 | 142 |
| 953.115142 | 11.5 | 94 | 142 |
| 953.120151 | 12.0 | 101 | 151 |
| 953.125151 | 12.5 | 101 | 151 |
| 953.130151 | 13.0 | 101 | 151 |
| 953.135160 | 13.5 | 108 | 160 |
| 953.140160 | 14.0 | 108 | 160 |
| 953.150169 | 15.0 | 114 | 169 |
| 953.155178 | 15.5 | 120 | 178 |
| 953.160184 | 16.0 | 125 | 184 |
| 953.165184 | 16.5 | 125 | 184 |
| 953.170184 | 17.0 | 125 | 184 |
| 953.175191 | 17.5 | 130 | 191 |
| 953.180191 | 18.0 | 130 | 191 |
| 953.185198 | 18.5 | 135 | 198 |
| 953.190198 | 19.0 | 135 | 198 |
| 953.195205 | 19.5 | 140 | 205 |
| 953.200205 | 20.0 | 140 | 205 |
Tabla de tamaño:
| Número de artículo | Diámetro (mm) | Longitud de trabajo (mm) | Longitud total (mm) |
| 953.015040 | 1.5 | 18 | 40 |
| 953.020049 | 2.0 | 24 | 49 |
| 953.025057 | 2.5 | 30 | 57 |
| 953.028061 | 2.8 | 33 | 61 |
| 953.030061 | 3.0 | 33 | 61 |
| 953.032065 | 3.2 | 36 | 65 |
| 953.033065 | 3.3 | 36 | 65 |
| 953.035070 | 3.5 | 39 | 70 |
| 953.040075 | 4.0 | 43 | 75 |
| 953.042075 | 4.2 | 43 | 75 |
| 953.045080 | 4.5 | 47 | 80 |
| 953.048086 | 4.8 | 52 | 86 |
| 953.050086 | 5.0 | 52 | 86 |
| 953.052086 | 5.2 | 52 | 86 |
| 953, .055093 | 5.5 | 57 | 93 |
| 953.060093 | 6.0 | 57 | 93 |
| 953, .065101 | 6.5 | 63 | 101 |
| 953.070109 | 7.0 | 69 | 109 |
| 953.075109 | 7.5 | 69 | 109 |
| 953.080117 | 8.0 | 75 | 117 |
| 953.090125 | 9.0 | 81 | 125 |
| 953.095125 | 9.5 | 81 | 125 |
| 953.100133 | 10.0 | 87 | 133 |
| 953.105133 | 10.5 | 87 | 133 |
| 953.110142 | 11.0 | 94 | 142 |
| 953.115142 | 11.5 | 94 | 142 |
| 953.120151 | 12.0 | 101 | 151 |
| 953.125151 | 12.5 | 101 | 151 |
| 953.130151 | 13.0 | 101 | 151 |
| 953.135160 | 13.5 | 108 | 160 |
| 953.140160 | 14.0 | 108 | 160 |
| 953.150169 | 15.0 | 114 | 169 |
| 953.155178 | 15.5 | 120 | 178 |
| 953.160184 | 16.0 | 125 | 184 |
| 953.165184 | 16.5 | 125 | 184 |
| 953.170184 | 17.0 | 125 | 184 |
| 953.175191 | 17.5 | 130 | 191 |
| 953.180191 | 18.0 | 130 | 191 |
| 953.185198 | 18.5 | 135 | 198 |
| 953.190198 | 19.0 | 135 | 198 |
| 953.195205 | 19.5 | 140 | 205 |
| 953.200205 | 20.0 | 140 | 205 |
